TFT Specifications

TFT Modules

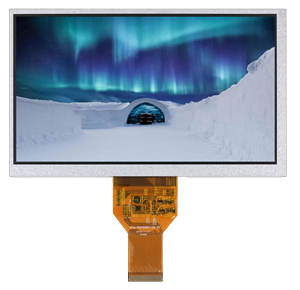

ASI-T-700MA3TN/D is a 7.0 brightness TFT with a resolution of 800 x 480, RGB interface and with a brightness of 300 Nits

PRODUCTS SPECS
PDF
Interface RGB
Size 7
Touch Panel None
Brightness/Nits Range 100-399
Resolution 800 x 480
Module Size 165.00 x 104.00 x 5.5
Active Area 152.40 x 91.44
Polarizer Transmissive
Brightness/Nits 300
Viewing Direction

ASI-T-700MA4DN/D is a 7 inch wide TFT, with a wide operating temperature and a resolution of 800 x 480, RGB interface and a brightness of 400 Nits.

PRODUCTS SPECS
PDF
Interface RGB
Size 7
Touch Panel None
Brightness/Nits Range 400-699
Resolution 800 x 480
Module Size 164.90 x 100.00 x 5.7
Active Area 154.08 x 85.92
Polarizer Transmissive
Brightness/Nits 400
Viewing Direction 12:00

ASI-T-700MA4F6/D is a 7.0 inch TFT with a resolution of 800 x 480, with parallel 24-bit RBG interface, a brightness of 430 nits and a capacitive touch panel.

PRODUCTS SPECS
PDF

Interface RGB
Size 7
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 400-699
Resolution

800 x 480

Module Size

164.9 x 100.0 x 4.58

Active Area

154.08 x 85.92

Polarizer Transmissive
Brightness/Nits 430
Viewing Direction 12:00

The ASI-T-700MA4HDN/A is a 7.0 inch TFT with HDMI interface, 800 x 480 resolution and 420 nits brightness.

PRODUCTS SPECS
PDF

Interface HDMI
Size 7
Touch Panel None
Brightness/Nits Range 400-699
Resolution

800 x 480

Module Size

164.90 X 99.80 X 17.60

Active Area

154.08 X 85.92

Polarizer Transmissive
Brightness/Nits 420
Viewing Direction 12:00

ASI-T-700MA5AN/D is a 7 inch wide TFT, with a wide operating temperature and a resolution of 800 x 480, RGB interface and a brightness of 500 Nits.

PRODUCTS SPECS
PDF
Interface RGB
Size 7
Touch Panel None
Brightness/Nits Range 400-699
Resolution 800 x 480
Module Size 164.90 x 100.00 x 5.7
Active Area 154.08 x 85.92
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction 12:00
ASI-T-700MA8LN/D is a 7 inch high brightness TFT with a resolution of 800 x 480, LVDS interface and with a brightness of 800 Nits; viewable in direct sunlight.
PRODUCTS SPECS
PDF

Interface LVDS
Size 7
Touch Panel None
Brightness/Nits Range 700-999
Resolution 800 x 480
Module Size

165.0 x 100.0 x 6.9

Active Area 154.08 x 85.92
Polarizer Transmissive
Brightness/Nits 800
Viewing Direction 12:00

ASI-T-700MAKFN/A is an industrial grade, high reliability, 7 inch  TFT with a resolution of 800 x 480, 24-bit RGB interface, wide temperature range, IPS all view and with a high brightness of 1000 Nits; viewable in direct sunlight.

PRODUCTS SPECS
PDF

Interface RGB
Size 7
Touch Panel None
Brightness/Nits Range 1000 & up
Resolution 800 x 480
Module Size

165.0 x 104.0 x 8.4

Active Area

152.40 x 91.44

Polarizer Transmissive
Brightness/Nits 1000
Viewing Direction IPS/All-view

ASI-T-700MB28N/D is a 7.0 inch TFT with a resolution of 800 x 480, RGB interface and with a brightness of 280 Nits

PRODUCTS SPECS
PDF
Interface RGB
Size 7
Touch Panel None
Brightness/Nits Range 100-399
Resolution 800 x 480
Module Size 164.90 x 100.00 x 5.1
Active Area 154.08 x 85.92
Polarizer Transmissive
Brightness/Nits 280
Viewing Direction

ASI-T-700MB4F2/D is a 7 inch TFT with a resolution of 800 x 480, RGB interface, a brightness of 430 Nits with a Capacitive Touch Panel.

PRODUCTS SPECS
PDF
Interface RGB
Size 7
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 400-699
Resolution 800 x 480
Module Size 165.0 x 100.0 x 4.85
Active Area 154.0 x 85.92
Polarizer Transmissive
Brightness/Nits 430
Viewing Direction 12:00

ASI-T-700MB4FN/A is a 7 inch TFT with a resolution of 800 x 480, 24-bit RGB interface, and a brightness of 400 Nits.

PRODUCTS SPECS
PDF

Interface RGB
Size 7
Touch Panel None
Brightness/Nits Range 400-699
Resolution 800 x 480
Module Size

164.85 x 99.95 x 3.5

Active Area

154.08 x 85.92

Polarizer Transmissive
Brightness/Nits 400
Viewing Direction 12:00

ASI-T-700MB4FT/D is a 7 inch TFT with a resolution of 800 x 480, RGB interface, a brightness of 400 Nits with a Resistive Touch Panel.

PRODUCTS SPECS
PDF

Interface RGB
Size 7
Touch Panel Resistive Touch Panel
Brightness/Nits Range 400-699
Resolution 800 x 480
Module Size

164.9 x 100.0 x 4.45

Active Area

154.08 x 85.92

Polarizer Transmissive
Brightness/Nits 400
Viewing Direction 12:00

ASI-T-700MB5FN/D is a 7.0 inch high brightness TFT with a resolution of 800 x 480, RGB interface and with a brightness of 500 Nits; viewable in direct sunlight

PRODUCTS SPECS
PDF
Interface RGB
Size 7
Touch Panel None
Brightness/Nits Range 400-699
Resolution 800 x 480
Module Size 165.00 x 100.00 x 2.95
Active Area 154.08 x 85.92
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction 12:00

ASI-T-7844128A8LN/A is a 7.84 inch high brightness TFT with a resolution of 400 x 1280, LVDS, All View, Bar Type interface and with a brightness of 850 Nits; viewable in direct sunlight.

PRODUCTS SPECS
PDF

Interface LVDS
Size 7.84
Touch Panel None
Brightness/Nits Range 700-999
Resolution 400 x 1280
Module Size

67.60 x 205.78 x 7.5

Active Area 59.40 x 190.08
Polarizer Transmissive
Brightness/Nits 850
Viewing Direction IPS/All-view

ASI-T-7844128A8LN/D is a 7.84 inch high brightness TFT with a resolution of 400 x 1280, LVDS/IPS interface and with a brightness of 550~850; viewable in direct sunlight.

PRODUCTS SPECS
PDF
Interface LVDS
Size 7.84
Touch Panel None
Brightness/Nits Range 700-999
Resolution 400 x 1280
Module Size 70.6 x 203.48 x 4.60
Active Area 59.4 x 190.08
Polarizer Transmissive
Brightness/Nits 850
Viewing Direction IPS/All-view

ASI-T-800HA2AN/D is a 8.0 inch TFT with a resolution of 800 x 600, RGB interface and with a brightness of 250 Nits

PRODUCTS SPECS
PDF
Interface RGB
Size 8
Touch Panel None
Brightness/Nits Range 100-399
Resolution 800 x 600
Module Size 183.00 x 141.00 x 5.6
Active Area 162.00 x 121.50
Polarizer Transmissive
Brightness/Nits 250
Viewing Direction

ASI-T-800HA2DN/D is a 8.0 inch TFT with a resolution of 800 x 600, LVDS interface and with a brightness of 250 Nits

PRODUCTS SPECS
PDF
Interface LVDS
Size 8
Touch Panel None
Brightness/Nits Range 100-399
Resolution 800 x 600
Module Size 183.00 x 141.00 x 5.6
Active Area

162.00 x 121.50

Polarizer Transmissive
Brightness/Nits 250
Viewing Direction

ASI-T-800IA2LN/D is a 8.0 inch TFT with a resolution of 1024 x 768, IPS, LVDS interface and with a brightness of 250 Nits

PRODUCTS SPECS
PDF
Interface LVDS
Size 8
Touch Panel None
Brightness/Nits Range 100-399
Resolution 1024 x 768
Module Size 174.00 x 136.00 x 2.45
Active Area 162.05 x 121.54
Polarizer Transmissive
Brightness/Nits 250
Viewing Direction IPS/All-view

ASI-T-800JA5LN/D is a 8 inch wide high brightness TFT, with a wide operating temperature and a resolution of 1024 x 600, LVDS interface and a brightness of 500 Nits.

PRODUCTS SPECS
PDF
Interface LVDS
Size 8
Touch Panel None
Brightness/Nits Range 400-699
Resolution 1024 x 600
Module Size 192.80 x 116.90 X 6.4
Active Area 176.64 x 99.36
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction 12:00

ASI-T-800MA4NN/D is a 8 inch wide TFT, with a wide operating temperature and a resolution of 800 x 480, RGB interface and a brightness of 450 Nits.

PRODUCTS SPECS
PDF
Interface RGB
Size 8
Touch Panel None
Brightness/Nits Range 400-699
Resolution 800 x 480
Module Size 192.8 x 116.9 x 6.4
Active Area 176.64 x 99.36
Polarizer Transmissive
Brightness/Nits 450
Viewing Direction

The ASI-T-800SAAKLN/A is a 8.0 inch TFT 4-lane LVDS interface, full viewing angle, 1280 x 720 resolution and 1000 nits brightness.

PRODUCTS SPECS
PDF

Interface LVDS
Size 8
Touch Panel None
Brightness/Nits Range 1000 & up
Resolution

1280 X 720

Module Size

192.80 x 116.90 x 9.85

Active Area

176.64 x 99.36

Polarizer Transmissive
Brightness/Nits 1000
Viewing Direction IPS/All-view

ASI-T-840HA3LN/D is a 8.4 inch TFT with a resolution of 800 x 600, LVDS interface and with a brightness of 350 Nits.

PRODUCTS SPECS
PDF

Interface LVDS
Size 8.4
Touch Panel None
Brightness/Nits Range 100-399
Resolution 800 x 600
Module Size

203.0 X 142.50 X 5.7

Active Area 170.4 x 127.8
Polarizer Transmissive
Brightness/Nits 350
Viewing Direction

ASI-T-8801248A4LN/D is a 8.8 inch high brightness TFT with a resolution of 1280 x 480, LVDS/IPS, Bar Type interface and with a brightness of 500 Nits; viewable in direct sunlight

PRODUCTS SPECS
PDF
Interface LVDS
Size 8.8
Touch Panel None
Brightness/Nits Range 400-699
Resolution 1280 x 480
Module Size 229.60 x 97.30 x 6.0
Active Area 209.28 x 78.48
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction IPS/All-view

ASI-T-8801248A5LN/AD is a 8.8 inch bar type, LVDS interface TFT with a resolution of 1280 x 480, and a brightness of 500 Nits; All View and viewable in direct sunlight.

PRODUCTS SPECS
PDF

Interface LVDS
Size 8.8
Touch Panel None
Brightness/Nits Range 400-699
Resolution 1280 x 480
Module Size 229.60 x 97.30 x 6.0
Active Area 209.28 x 78.48
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction IPS/All-view

ASI-T-900MA2DN/D is a 9.0 inch  TFT with a resolution of 800 x 480, RGB interface and with a brightness of 250 Nits.

PRODUCTS SPECS
PDF
Interface RGB
Size 9
Touch Panel None
Brightness/Nits Range 100-399
Resolution 800 x 480
Module Size 207.40 x 126.4 x 5.6
Active Area 198.00 x 111.70
Polarizer Transmissive
Brightness/Nits 250
Viewing Direction

ASI-T-9201948A5LN/D is a 9.2 inch wide TFT, with a wide operating temperature and a resolution of 1920 x 480, LVDS - Bar Type interface and a brightness of 500 Nits; viewable in direct sunlight.

PRODUCTS SPECS
PDF
Interface LVDS
Size 9.2
Touch Panel None
Brightness/Nits Range 400-699
Resolution 1920 x 480
Module Size 237.00 x 72.30 x 5.8
Active Area 226.94 x 56.74
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction

ASI-T-10101A2L6/W is a 10.1 inch TFT with a resolution of 800 x 1280, IPS, LVDS interface, a brightness of 240 Nits with a Capacitive Touch Panel.

PRODUCTS SPECS
PDF

Interface LVDS
Size 10.1
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 100-399
Resolution

800 x 1280

Module Size

248.8 x 174.5 x 4.15

Active Area

216.5766 x 135.36

Polarizer Transmissive
Brightness/Nits 240
Viewing Direction IPS/All-view

ASI-T-10101B2MP6/AT is a 10.1 inch TFT with a resolution of 800 x 1280, 4-lane MIPI interface, a brightness of 230 Nits with a Capacitive Touch Panel.

PRODUCTS SPECS
PDF

Interface MIPI
Size 10.1
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 100-399
Resolution

800 x 1280

Module Size

151.65 x 242.75 x 5.1

Active Area

135.36 x 216.576

Polarizer Transmissive
Brightness/Nits 230
Viewing Direction IPS/All-view

ASI-T-1010JA3AN/D is a 10.1 inch TFT with a resolution of 1024 x 600, RGB interface and with a brightness of 380 Nits

PRODUCTS SPECS
PDF

Interface RGB
Size 10.1
Touch Panel None
Brightness/Nits Range 100-399
Resolution 1024 x 600
Module Size

235 x 143 x 5.1

Active Area 222.72 x 125.28
Polarizer Transmissive
Brightness/Nits 380
Viewing Direction 12:00

ASI-T-1010JA4L6/D is a 10.1 inch TFT with a resolution of 1024 x 600, IPS, LVDS interface, a brightness of 430 Nits with a Capacitive Touch Panel.

PRODUCTS SPECS
PDF
Interface LVDS
Size 10.1
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 400-699
Resolution 1024 x 600
Module Size 236 x 144 x 6.78
Active Area 222.72 x 125.28
Polarizer Transmissive
Brightness/Nits 430
Viewing Direction IPS/All-view

ASI-T-1010JB5LN/D is a 10.1 inch high brightness TFT with a resolution of 1024 x 600, IPS, LVDS interface and with a brightness of 500 Nits; viewable in direct sunlight

PRODUCTS SPECS
PDF

Interface LVDS
Size 10.1
Touch Panel None
Brightness/Nits Range 400-699
Resolution 1024 x 600
Module Size

235 x 143 x 5.0

Active Area 222.72 x 125.28
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction IPS/All-view

ASI-T-1010H2A2L6/A is a 10.1 inch ultra thin, ultra high definition, high contrast TFT with capacitive touch, IPS all-view, a resolution of 1920 x 1200, 2 channel, 4 lane LVDS interface, a brightness of  250 Nits.

PRODUCTS SPECS
PDF

Interface LVDS
Touch Panel Capacitive Touch Panel
Size 10.1
Brightness/Nits 250
Brightness/Nits Range 100-399
Resolution

1920 x 1200

Module Size

240.0 x 165.00 x 9.50

Active Area

216.81 x 135.50

Polarizer Transmissive
Viewing Direction IPS/All-view

ASI-T-1010SA2W5/D is a 10.1 inch TFT with a resolution of 1280 x 800, LVDS/IPS interface, a brightness of 240 Nits with a Capacitive Touch Panel.

PRODUCTS SPECS
PDF
Interface LVDS
Size 10.1
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 100-399
Resolution 1280 x 800
Module Size 252.2 x 159.0 x 4.58
Active Area 216.96 x 135.6
Polarizer Transmissive
Brightness/Nits 240
Viewing Direction IPS/All-view

ASI-T-1010SA2WN/D is a 10.1 inch TFT with a resolution of 1280 x 800, IPS, LVDS interface and with a brightness of 260 Nits

PRODUCTS SPECS
PDF
Interface LVDS
Size 10.1
Touch Panel None
Brightness/Nits Range 100-399
Resolution 1280 x 800
Module Size 229.34 x 148.95 x 2.50
Active Area 216.96 x 135.60
Polarizer Transmissive
Brightness/Nits 260
Viewing Direction IPS/All-view

ASI-T-1010SA5DN/D is a 10.1 inch high brightness TFT with a resolution of 1280 x 800, IPS, LVDS interface and with a brightness of 900 Nits; viewable in direct sunlight

PRODUCTS SPECS
PDF
Interface LVDS
Size 10.1
Touch Panel None
Brightness/Nits Range 400-699
Resolution 1280 x 800
Module Size 229.46 x 149.10 x 4.80
Active Area 216.96 x 135.60
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction IPS/All-view

ASI-T-1010SA9HD6/X is a 10.1 inch high brightness TFT with a resolution of 1280 x 800, IPS,  HDMI interface and with a brightness of 900 Nits; viewable in direct sunlight with Capacitive Touch Panel

PRODUCTS SPECS
PDF

Interface HDMI
Size 10.1
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 700-999
Resolution 1280 x 800
Module Size

257.96 x 168.6 x 28.2

Active Area 216.96 x 135.60
Polarizer Transmissive
Brightness/Nits 900
Viewing Direction IPS/All-view

ASI-T-1020MA3NN/D is a 10.2 inch wide TFT, with a resolution of 800 x 480, RGB interface and a brightness of 350 Nits.

PRODUCTS SPECS
PDF
Interface RGB
Size 10.2
Touch Panel None
Brightness/Nits Range 100-399
Resolution 800 x 480
Module Size 235.0 x 145.8 x 5.5
Active Area 222.00 x 132.48
Polarizer Transmissive
Brightness/Nits 350
Viewing Direction

ASI-T-10251248AKLN/D is a 10.25 inch wide TFT, with a resolution of 1280 x 480, LVDS interface, IPS all view, with wide temperature operation and storage and a high brightness of 1,000 Nits.

PRODUCTS SPECS
PDF

Interface LVDS
Size 10.25
Touch Panel None
Brightness/Nits Range 1000 & up
Resolution

1280 x 480

Module Size

258.60 x 107.00 x 6.31

Active Area

243.84 x 91.44

Polarizer Transmissive
Brightness/Nits 1000
Viewing Direction IPS/All-view

ASI-T-1040GA6TN/D is a 10.4 inch wide TFT, with a wide operating temperature and a resolution of 640 x 480, All View display, RGB interface and a brightness of 500 Nits.

PRODUCTS SPECS
PDF
Interface RGB
Size 10.4
Touch Panel None
Brightness/Nits Range 400-699
Resolution 640 x 480
Module Size 225.50 x 176.30 x 7.81
Active Area 211.20 x 158.40
Polarizer Transmissive
Brightness/Nits 500
Viewing Direction IPS/All-view

The ASI-T-1040HA3LN/D is a 10.4 inch TFT, with a 800 x 600 resolution, LVDS interface and 300 nits brightness.

PRODUCTS SPECS
PDF
Interface LVDS
Size 10.4
Touch Panel None
Brightness/Nits Range 100-399
Resolution 800 x 600
Module Size 236.00 x 176.90 x 5.6
Active Area 211.20 x 158.40
Polarizer Transmissive
Brightness/Nits 300
Viewing Direction

The ASI-T-1040HA4LN/D is a 10.4 inch TFT, with a 800 x 600 resolution, LVDS interface and 400 nits brightness.

PRODUCTS SPECS
PDF
Interface LVDS
Size 10.4
Touch Panel None
Brightness/Nits Range 400-699
Resolution 800 X 600
Module Size 236.0 X 179.9 X 8.1
Active Area 211.2 X 158.4
Polarizer Transmissive
Brightness/Nits 400
Viewing Direction
