7.0” TFT, HDMI Interface, with/without Touch Panel
|
PART #
|
RESOLUTION
|
A.A.
|
OUTLINE SIZE
|
CR
|
NITS
|
TOUCH
|
VIEWING DIRECTION
|
|
ASI-T-700MA4HDN/A
|
800x480
|
154.08x85.92
|
164.90x99.80x17.60
|
500
|
420
|
No
|
12:00
|
|

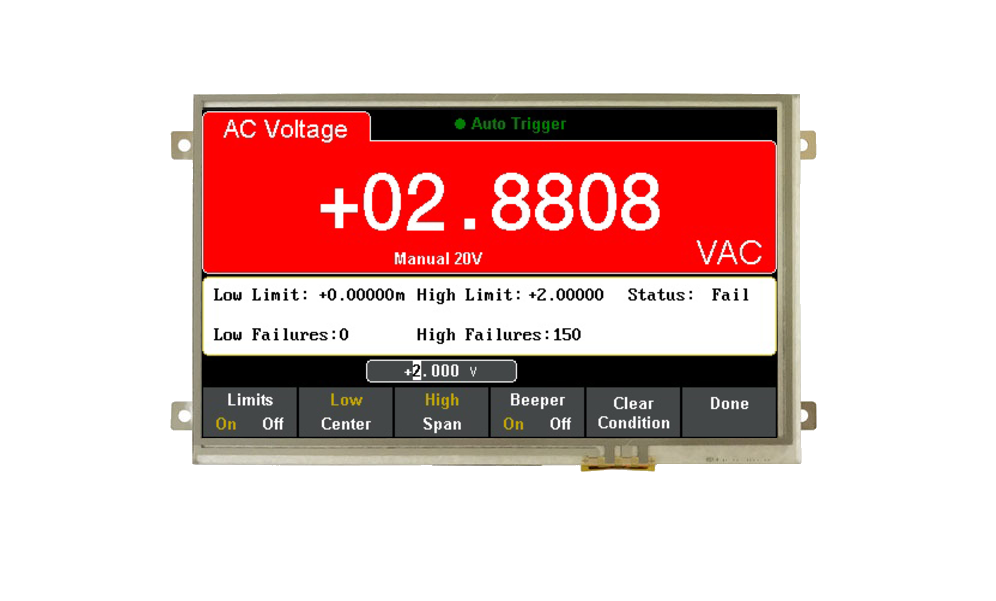

ASI-T-700MA3HDR/A
|
800x480
|
154.08x85.92
|
164.90x99.80x19.10
|
500
|
320
|
RTP
|
12:00
|
|

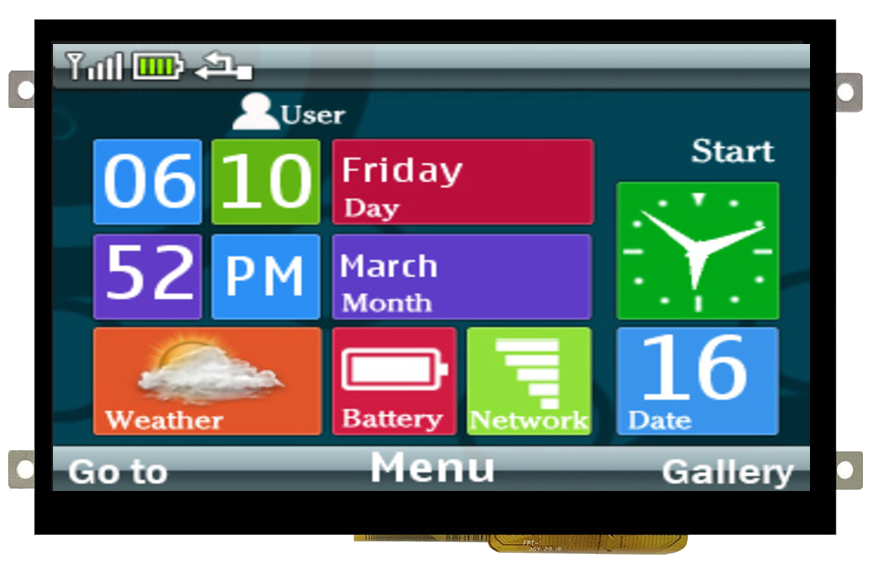

ASI-T-700MA3HD6/A
|
800x480
|
154.08x85.92
|
164.90x99.80x18.90
|
500
|
340
|
CTP
|
12:00
|
|
ASI-T-700JA4HDN/A
|
1024x600
|
154.21x85.92
|
164.90x100.0x15.60
|
800
|
400
|
No
|
ALL
|
|

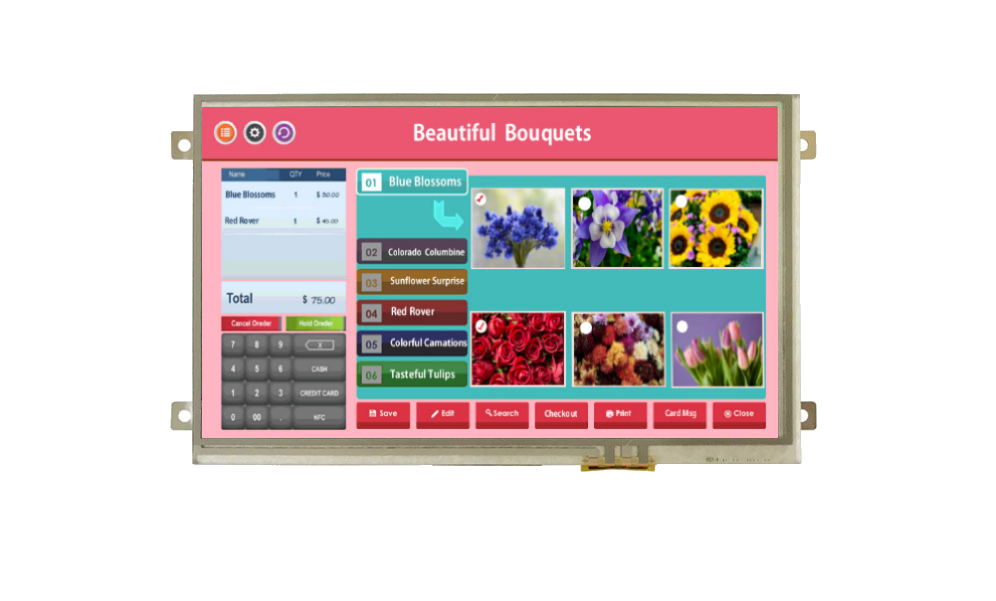

ASI-T-700JA3HDR/A
|
1024x600
|
154.21x85.92
|
164.90x100.0x17.10
|
800
|
310
|
RTP
|
ALL
|
|
ASI-T-700JA3HD6/A
|
1024x600
|
154.21x85.92
|
164.90x100.0x17.60
|
800
|
340
|
CTP
|
ALL
|
A perfect choice for many applications such as:
medical devices, industrial appliances, marine equipment, POP, communication equipment, industrial equipment, etc.
All of these are designed to work well with the Raspberry Pi. The TFTs support video input via HDMI with USB interface for touch.
