ASI-T-6508032A4K6/Z

Photos are for illustrative purposes only and may not represent actual products. Please refer to specifications and drawings.

ASI-T-6508032A5AN/Z

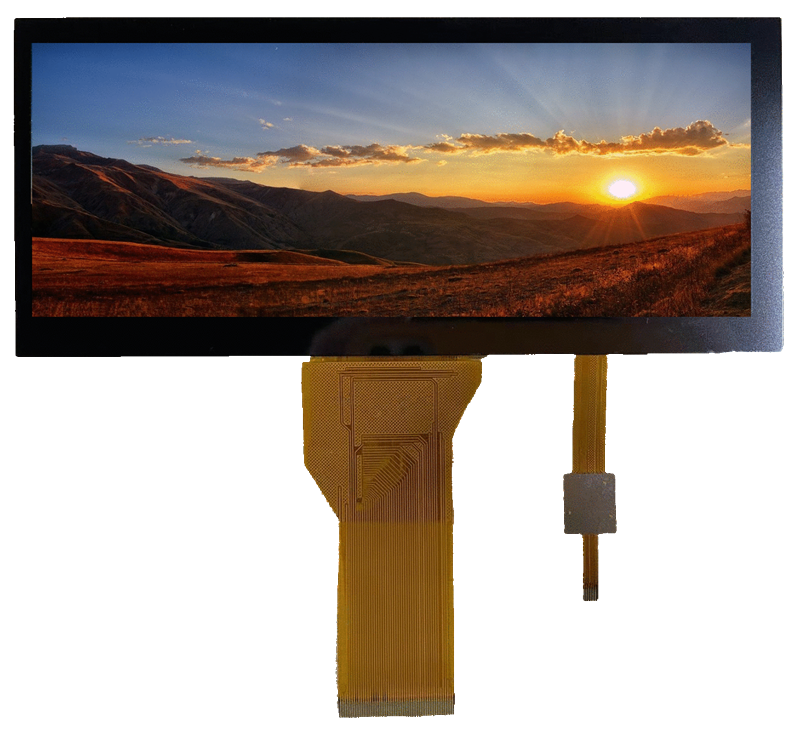

ASI-T-6508032A5AN/Z is a 6.5 inch bar type TFT with a resolution of 800 x 320, RGB interface with 500 nits brightness.
TFT Specifications
Size 6.5
Resolution

800 X 320
Module Size

164.90 x 72.456 x 3.71
Active Area

153.84 x 57.088
Interface RGB
Touch Panel None
Brightness/Nits Range 400-699
Brightness/Nits 500
PDF

Polarizer Transmissive
Viewing Direction 12:00
