ASI-T-5001MA1F6/A

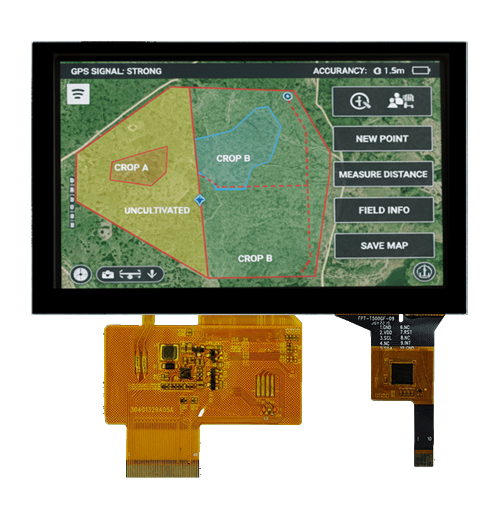

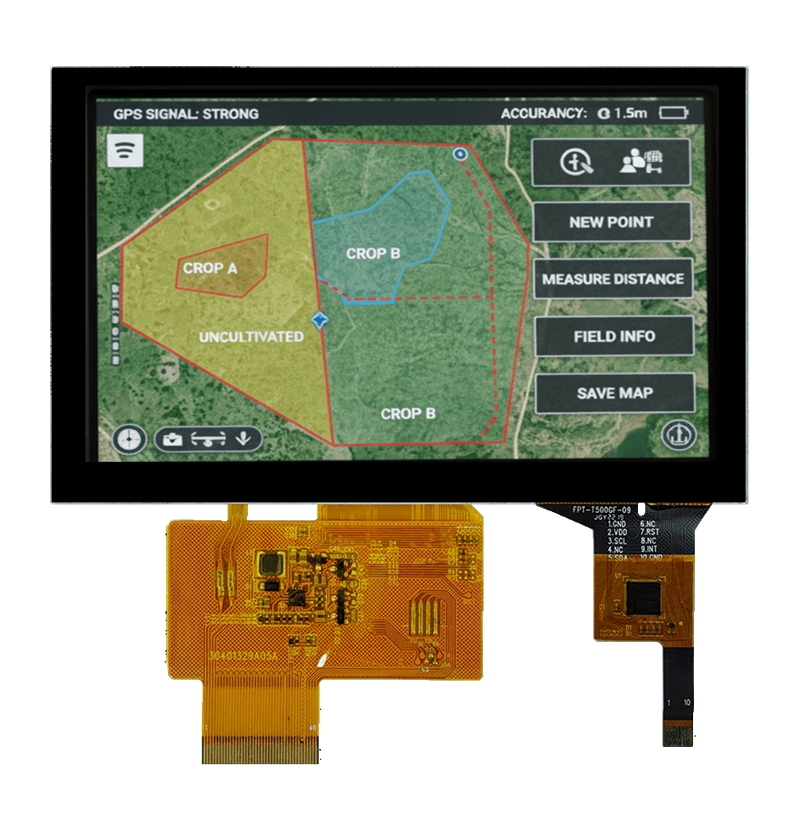

ASI-T-5001MA1F6/A is a 5.0 inch transflective TFT with a resolution of 800 x 480, capacative touch panel, 24-bit RGB interface, wide temperature, and a brightness of 130 Nits, viewable in direct sunlight.

TFT Specifications
Size 5
Resolution 800 x 480
Module Size 120.70 x 75.8 x 5.10
Active Area 108.00 x 64.80
Interface RGB
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 100-399
Brightness/Nits 130
PDF
Polarizer Transflective
Viewing Direction IPS/All-view
