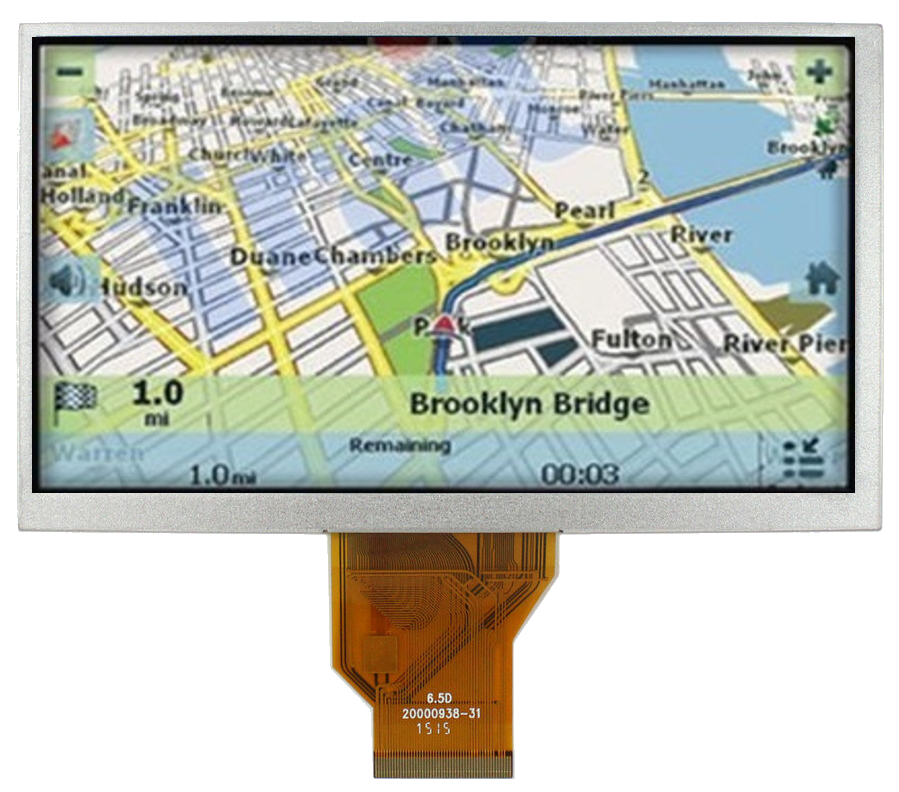

The ASI-T-650MA8AN/W is a 6.5" TFT with 800x480 resolution, RGB interface and 800 nits brightness.

TFT Specifications
Size 6.5
Resolution 800 X 480
Module Size

155.2 x 89.4 x 5.5

Active Area 143.4 x 76.704
Interface RGB
Touch Panel None
Brightness/Nits Range 700-999
Brightness/Nits 800

Polarizer Transmissive
Viewing Direction 12:00
