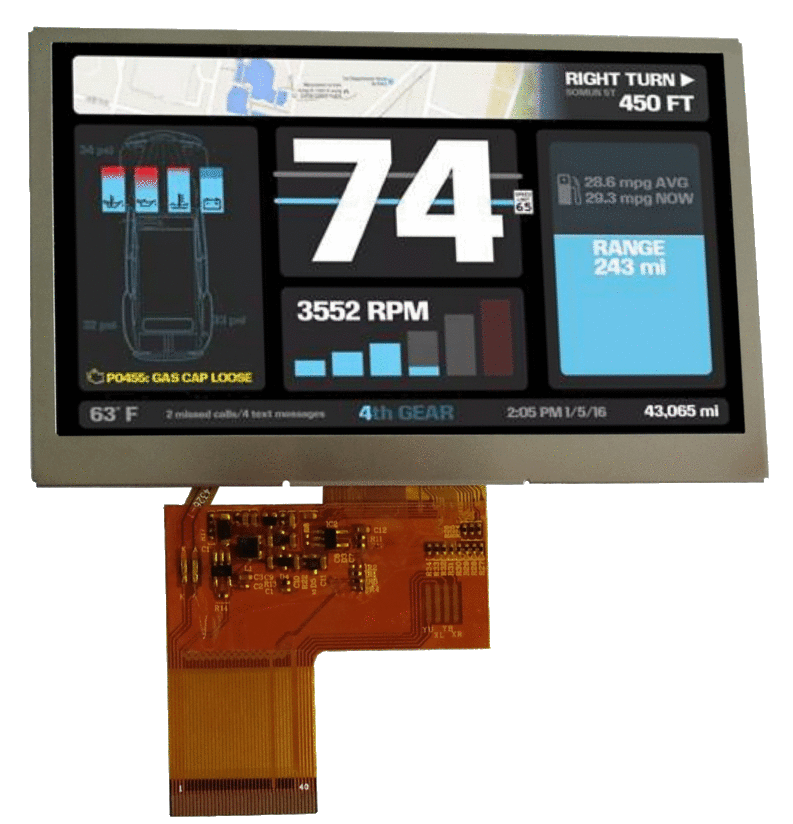

ASI-T-430MA5FN/AH is a 4.3" TFT with 800 X 480 (WVGA) resolution.  It also features great contrast of 700:1 and wide viewing angles of 80/80/80/80. Operating temperature of -20 + 70 deg. C; storage temperature of -30 +80 deg. C. combined with a nice brightness of 500 nits makes the ASI-T-430MA5FN/AH a great TFT capable of displaying sharp images.

TFT Specifications
Size 4.3

800 x 480

Module Size

105.5 x 67.2 x 2.80

Active Area

95.04 x 53.856

Interface RGB
Touch Panel None
Brightness/Nits Range 400-699
Brightness/Nits 500

Polarizer Transmissive
Viewing Direction IPS/All-view
