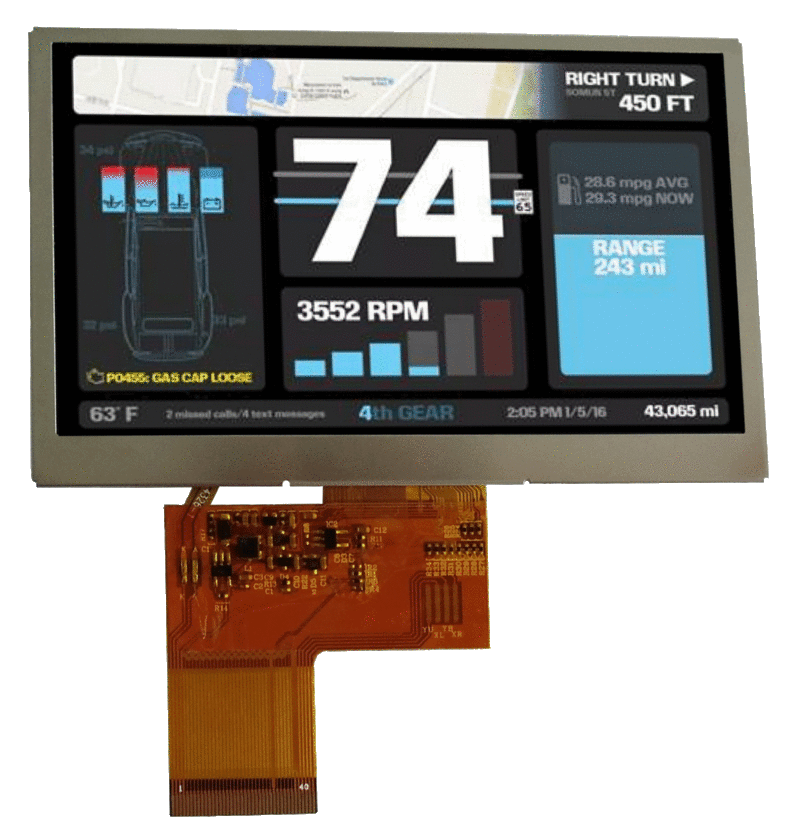

ASI-T-430MA4AN/D is a 4.3" TFT with 800 X 480 (WVGA) resolution.  It also features great contrast of 800:1 The IPS panel technology allows wide viewing angles of 80/80/80/80. Operating temperature of -20 + 60 deg. C; storage temperature of -30 +60 deg. C. combined with a nice brightness of 400 nits the ASI-T-430MA4AN/D is a great TFT capable of displaying sharp images viewable at every angle.

TFT Specifications
Size 4.3

800 x 480

Module Size

105.5 x 67.2 x 2.90

Active Area 95.04 x 53.86
Interface RGB
Touch Panel None
Brightness/Nits Range 400-699
Brightness/Nits 400

Polarizer Transmissive
Viewing Direction IPS/All-view
