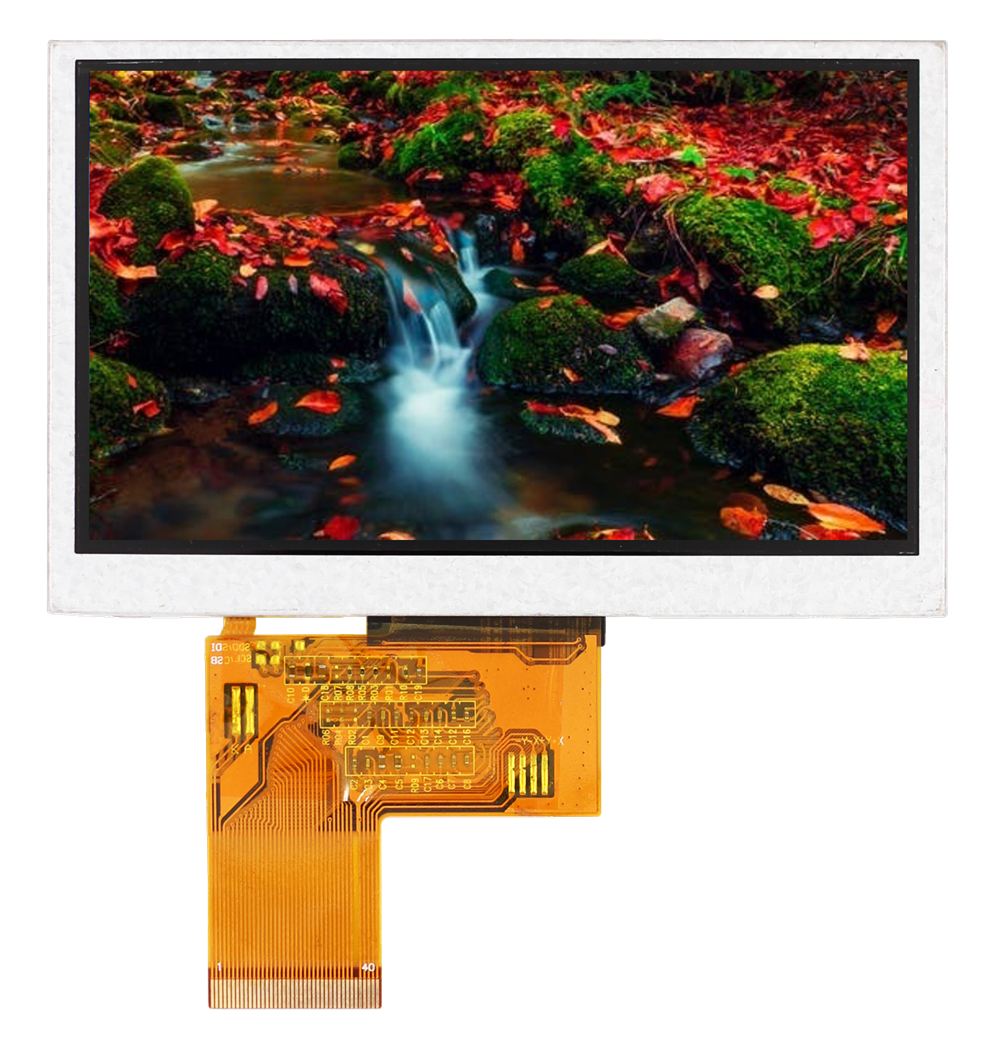

ASI-T-430FAKFN/D is a 4.3 inch high brightness TFT with a resolution of 480 X 272, RGB interface and with a brightness of 1000 Nits; viewable in direct sunlight.

TFT Specifications
Size 4.3
Resolution 480 X 272
Module Size 105.5 x 67.2 x 3.0
Active Area 95.04 x 53.86
Interface RGB
Touch Panel None
Brightness/Nits Range 1000 & up
Brightness/Nits 1000

Polarizer Transmissive
Viewing Direction 12:00
