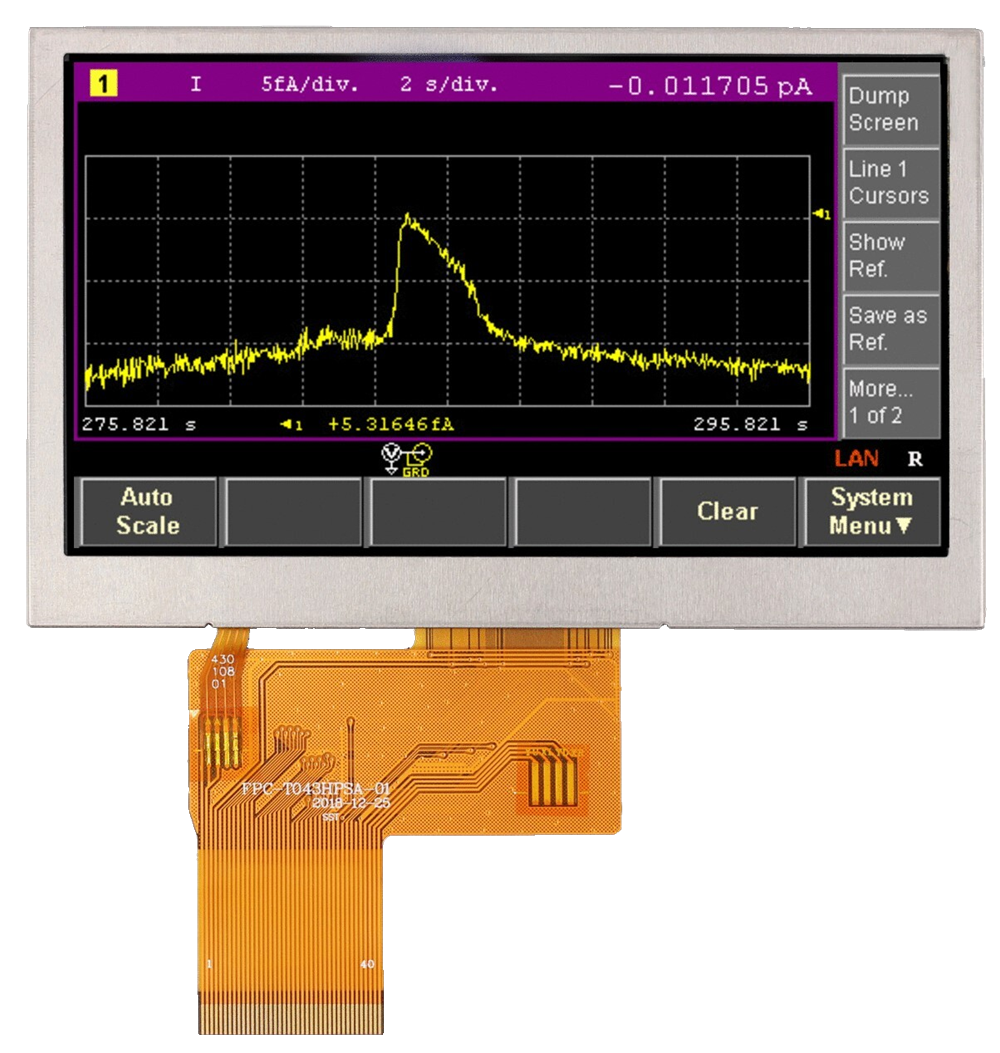

ASI-T-430FA5AN/D is a 4.3 inch high brightness TFT with a resolution of 480 x 272, , RGB interface and with a brightness of 500 nits; viewable in direct sunlight.

TFT Specifications
Size 4.3
Resolution 480 x 272
Module Size

105.5 x 67.2 x 2.95

Active Area 95.04 x 53.86
Interface RGB
Touch Panel None
Brightness/Nits Range 400-699
Brightness/Nits 500

Polarizer Transmissive
Viewing Direction IPS/All-view
