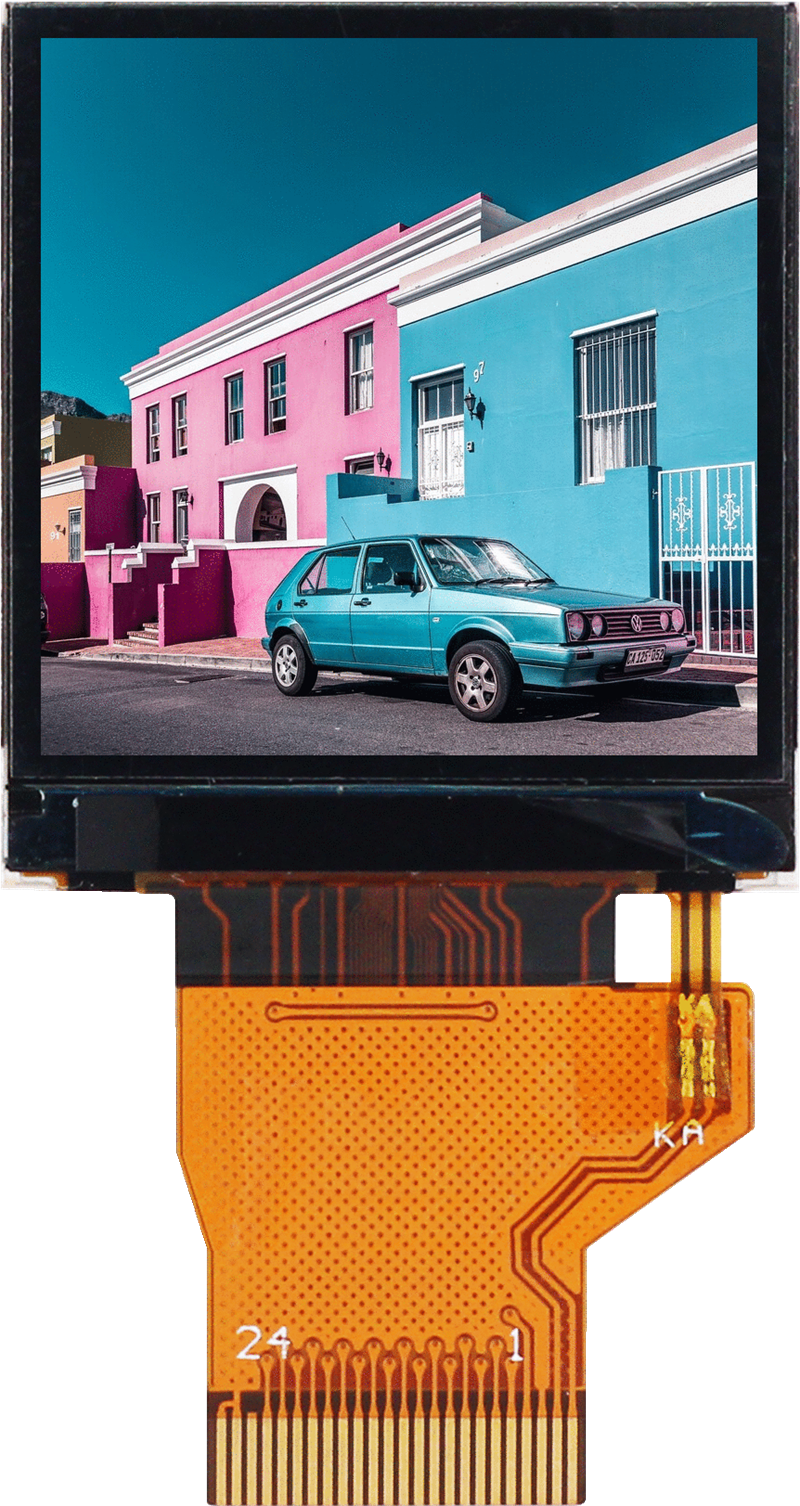

Photos are for illustrative purposes only and may not represent actual products. Please refer to specifications and drawings.


ASI-T-2602A3SMN/D is a 2.6 inch square TFT with a resolution of 240 x 320, MCU or SPI interface and with a brightness of  300 Nits.

TFT Specifications
Size 2.6
Resolution 240 x 240
Module Size 42.70 x 51.35 x 2.20
Active Area 43.20 x 43.20
Interface MCU, SPI
Touch Panel None
Brightness/Nits Range 100-399
Brightness/Nits 300
Polarizer Transmissive
Viewing Direction IPS/All-view
