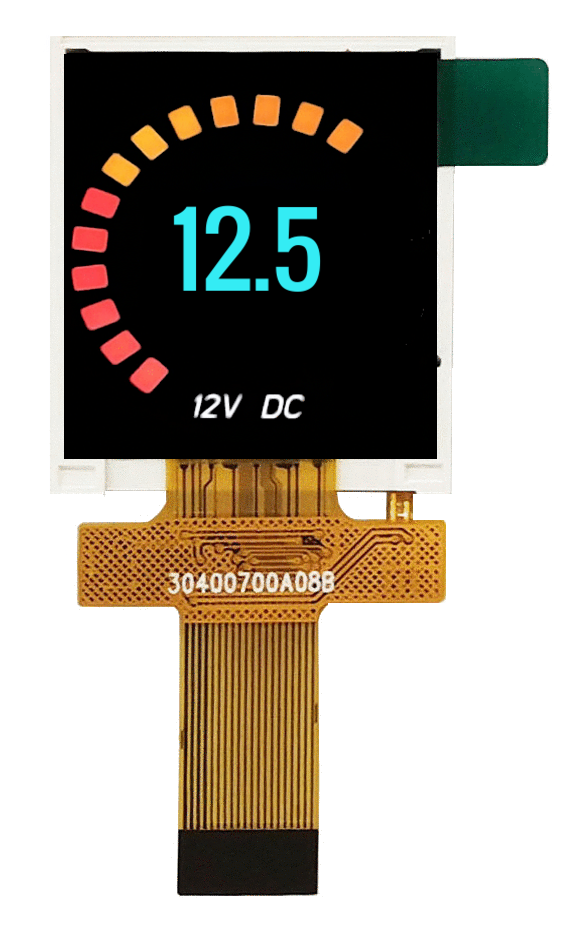

ASI-T-1402A8SCN/A is a 1.4 inch TFT with a resolution of 240 x 240, IPS all-view, CPU and SPI interface, and a high brightness of 800 Nits, ideal for sunlight viewing.

TFT Specifications
Size 1.4
Resolution 240 x 240
Module Size 30.00 x 35.00 x 2.20
Active Area 25.20 x 25.20
Interface CPU, SPI
Touch Panel None
Brightness/Nits Range 700-999
Brightness/Nits 800
Polarizer Transmissive
Viewing Direction IPS/All-view
