ASI-T-1542A3MU6/AM

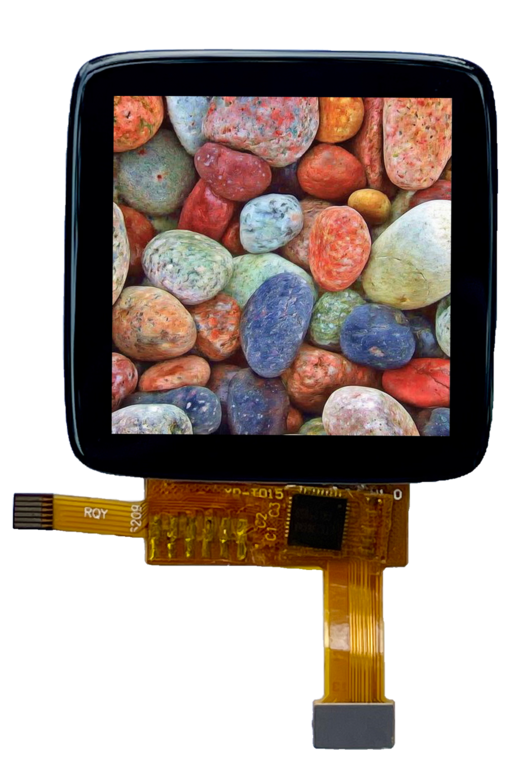

ASI-T-1542A3MU6/AM is a 1.54 inch TFT with a resolution of 240 x 240, IPS all-view, MCU interface, a brightness of 350 Nits with a Capacitive Touch Panel.

TFT Specifications
Size 1.54
Resolution 240 x 240
Module Size 31.52 x 33.72 x 1.85
Active Area 27.72 x 27.72
Interface MCU
Touch Panel Capacitive Touch Panel
Brightness/Nits Range 100-399
Brightness/Nits 350
PDF

Polarizer Transmissive
Viewing Direction IPS/All-view
